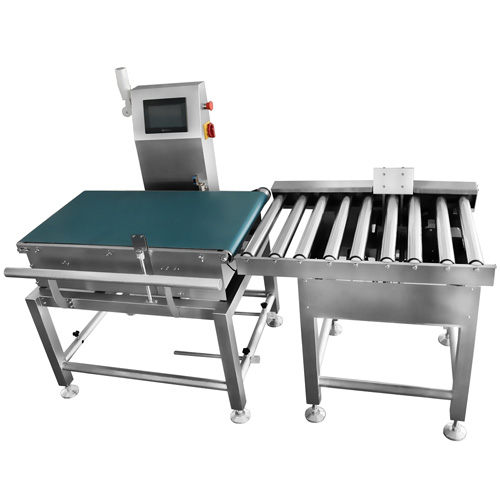

Strong versatility: the machine has standardized structure and standardized man-machine interface, which can complete weighing of various materials;
Simple operation: The use of Color man-machine interface, full intelligent, humanized design; The conveyor belt is easy to disassemble, easy to install and maintain, easy to clean;
Adjustable speed: variable frequency motor is adopted, the speed can be adjusted according to the needs;
High speed, high precision: high precision digital sensor, sampling speed, high precision;
Zero tracking: manual or automatic zero clearing and dynamic zero tracking;
Report function: built-in report statistics, reports can be generated in EXCEL format, can automatically generate a variety of real-time data reports,
External USB interface, U disk can be inserted to export data in real time, hold the production status at any time; Provide factory parameter setting recovery function, and can store a variety of formula, easy to change product specifications;
Interface function: reserve standard interface, convenient data management, communication connection with PC and other intelligent devices;
Self-learning: there is no need to set parameters after the new product formula information is created. The self-learning function can automatically set the parameters suitable for the device and store them for the next time when the product is switched. (2000 parameter storage entries can be increased).
Operation mode: three operation modes
a.Dynamic mode: normal pipeline mode;
b.Static mode: after the material enters the weighing platform, the weighing platform stops running, and the weighing is carried out to improve the accuracy. It is suitable for products with less than 20 passes per minute;
c.Energy saving mode :(optional) on the basis of mode a and b, the energy saving mode can be turned on. It is set that the machine will stop automatically when the equipment idles for a long time without materials and will start automatically when the materials pass.
Fault self-detection: it can detect whether the motor, frequency converter, AD, sensor and photoelectric are normal and the cause of the fault as well as the guide detection of cylinder, solid state relay and solenoid valve. Convenient for non-professional personnel to inspect and maintain.
Peripheral communication: standard rS-485 and RS-232 double communication port output.
a.RS-485 interface is MODBUS, RTU standard protocol, but the write address (57600bps, 8, N, 1, and the subordinate station number is 3) can not be modified.
b.(Optional) RS-232 interface is a custom protocol, which can set the instruction sending content by itself. (57600bps, 8, N, 1) can be modified.
External printer or code spraying machine and other communication equipment, can also be connected with the front and rear end packaging machine and production equipment feedback weighing results so that it can automatically modify the formula parameters.
Chinese input method
a.The formula name, etc., can be entered in Chinese, making it more intuitive to find and switch the formula.
b.With the RS-232 communication port, Chinese characters of Unicode string can be sent to peripheral devices. (Suitable for external printer or marking machine to print Chinese characters).
